Private Activation Server Web Admin Console Guide
Private Activation Server
DH2i Private Activation Server (DxPAS) offers you the volume licensing capability through implementation of your own dedicated private licensing server. Your administrator sets up this server to access and use private volume licenses. Once configured, the Private Activation Server can then serve the license to multiple local DxEnterprise computers. Private Activation Server and local computers do not need to sign in to DH2i Activation Portal to activate and acquire proper license answer file.
DH2i Private Activation Server uses a client-server model to active clients. Local DxEnterprise computers connect to the Private Activation Server for all activation needs. The Private Activation Server and local DxEnterprise computers all reside on your local network.
Connect to DxPAS
Open a browser and connect to the Private Activation Server on port 8080. Enter "admin" as the passkey. Once successfully connected, you will need to change the passkey. Please make note of the new passkey as there is no way to recover it thereafter.
:::NOTE: If the "admin" account is locked, management of DxPAS via Web Admin Console is not available. :::
Get License Request for DxPAS
Before the Private Activation Server can serve local DxEnterprise computer, it must be authorized by DH2i. Select "Get License Request for Private Activation Server" hyperlink to get started.

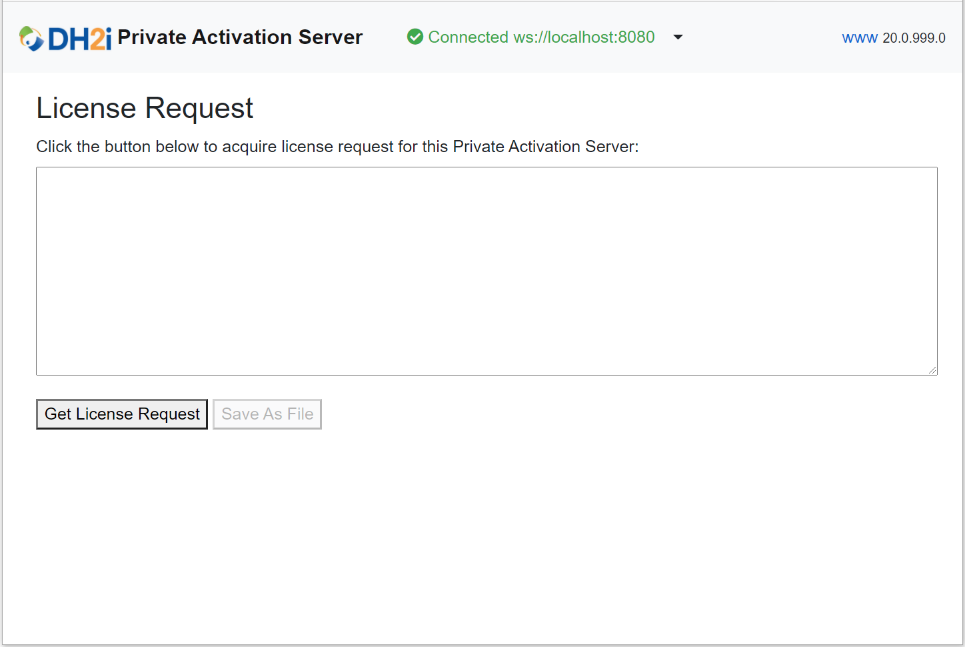

At the License Request dialog, click "Get License Request" button to acquire the license request blob. This is the request blob that must be sent to DH2i to have a license answer blob generated for the Private Activation Server. Click "Save As File" button to save the request blob to file which can make it easier to send to DH2i.
Apply License Answer to DxPAS
Once a license answer blob is received from DH2i, it's time to apply this to the Private Activation Server. Select "Set Private Activation Server License" hyperlink to get started.
Click "Choose File" button to load the license answer blob content from the answer file received from DH2i, or paste the license answer blob directly into the File content textbox. Click "Set License" button to apply the license answer to the Private Activation Server.
Manual License Generation for Local DxEnterprise Computer(s) with DxPAS
If a local DxEnterprise computer requires a manual activation, the license can be generated with the Private Activation Server. This is similar as to manual activate a DxEnterprise computer with DH2i Clients portal. Select "Activate Local DxEnterprise Computer" hyperlink to get started.
Enter the license request blob for the local DxEnterprise computer in the provided field and click "Submit" to generate a license answer blob for the local DxEnterprise computer. The license answer blob can then be used to activate the local DxEnterprise computer.
Get DxPAS Activation Report
To view the report for all activations with the Private Activation Server, select "Get Activation Report" hyperlink to get started.
Get DxPAS Server Report
Activation data pertained to the Private Activation Server is stored inside a LiteDB file. At DH2i request, this file (*.db) can be downloaded and sent to DH2i. To get started, select "Download Private Activation Server Report" hyperlink.
Change Password
To change the password to the Private Activation Server, select "Change Password" option menu to get started.
To disconnect from the Private Activation Server, select "Logout" option menu.
